Knee rail Weserbergland

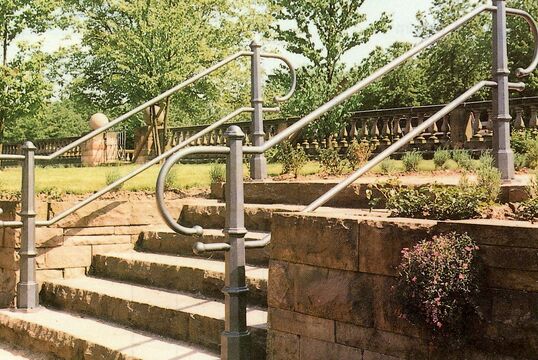

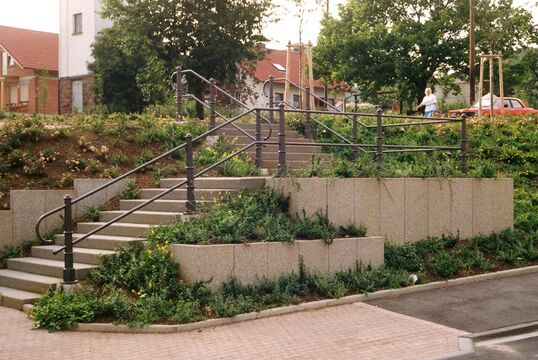

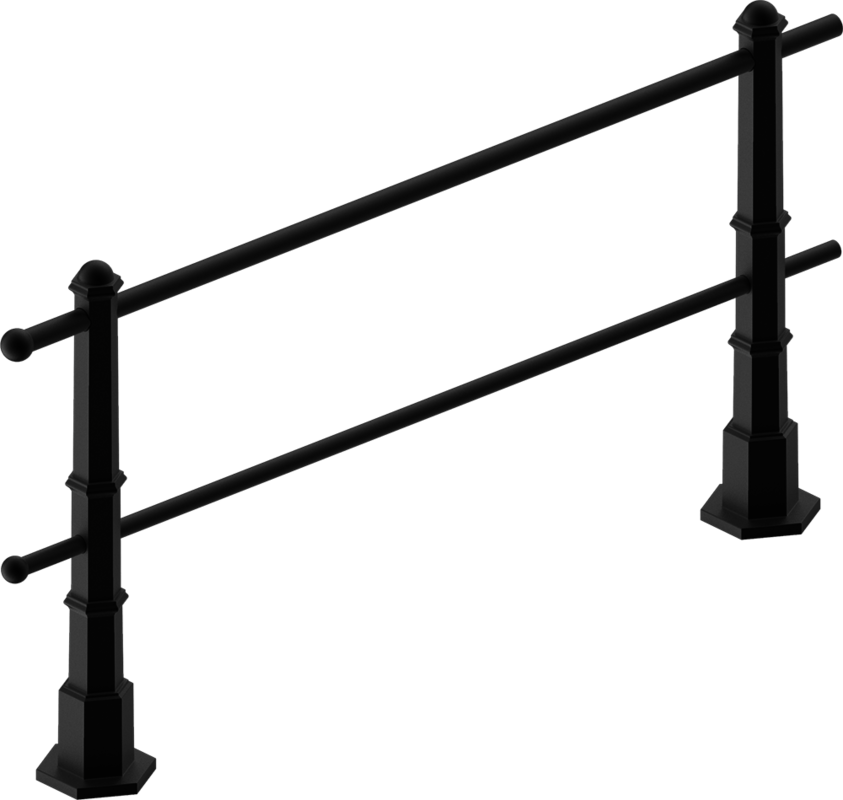

The knee rail Weserbergland is often used in historic sceneries, for example in old city centres. But with its harmonious look, it is well suited for any urban environment. The octagonal shape of the post is its distinctive feature. The three decorative rings and the sturdy foot give it its distinct look.

Material	cast aluminium post, steel cross beam connection, hot-dip galvanised and colour coated.
Colours	full range of RAL or DB colours available
Version	cast aluminium post with octagonal or round base plate, 2-, 3- or multiple chorded, stationary for concreting in or mounting to ground plate
Accessories	barrier posts, sign posts, railings, end pieces straight or curved
Dimensions	height of post: 100 cm hand rails: Ø 42, 48 mm knee rails and bottom chords: Ø 34, 42 mm height of hand rail: 90 cm
Downloads	Product info (2 MB) Brochure knee rails (10 MB)

{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Knee rail Knee rail Weserbergland\')}')}

References

Ihleufer, Burg

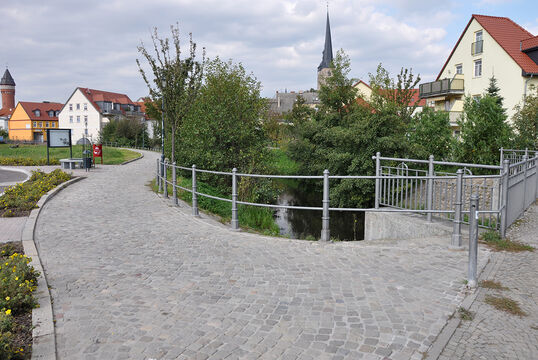

The Ihle bank in Burg is secured as effectively as it is decoratively by the knee rail from the Weserbergland system.

39288 Burg

learn more
