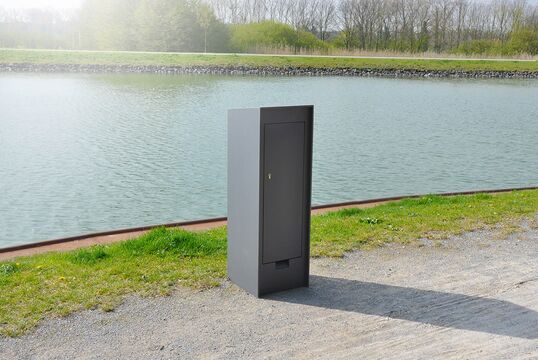

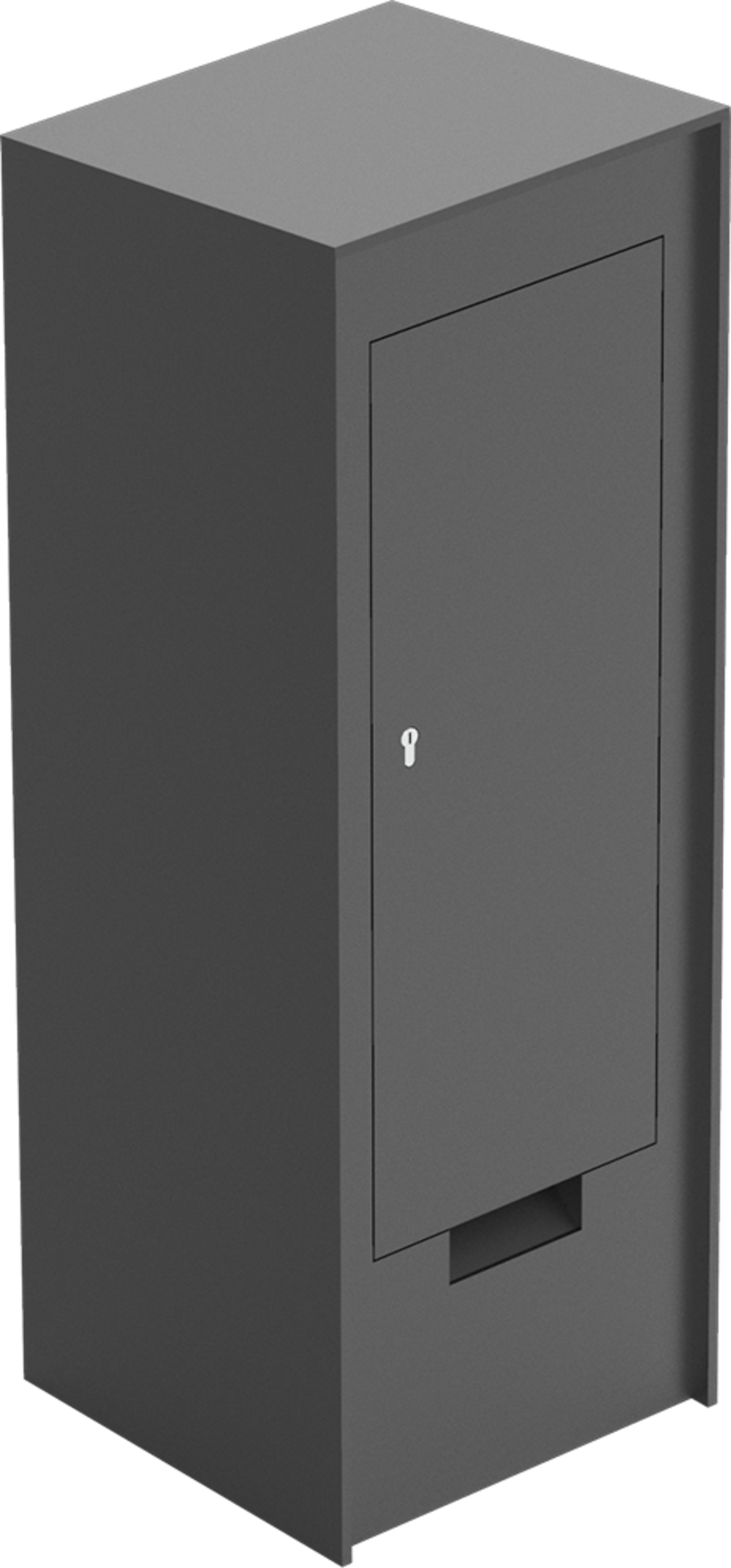

Power and water bollard Modena

Its clear structure, minimalistic form and extreme robustness distinguish the power and water bollard Modena from more traditional type power and water supply bollards. With its minimalistic style, it blends in easily with any kind of environment.

Material

steel hot-dip galvanised, colour coated
Colours full range of RAL or DB colours available
Version

thick- walled steel housing with perforated sheet casing, dimensions (WxHxD): 320 x 320 x 1000 mm or 380 x 380 x 1000 mm, for screw mounting on concrete foundation, access hole to allow cables/hoses to pass through locked door, with integral lock for triangular socket or cylinder lock, with internal LED illumination on request,separated electricity circles with separate doors possible, integration of power supply, fresh water supply or wastewater discharge, technical equipment depending on individual requirements, electricity, water and sewage water also in combination, fresh water supply with additional heating as anti-freeze protection on request
Accessories ground anchor with flange for concrete casting
Components waste receptacles, barrier posts
Dimensions

W x H x D

340 x 340 x 1000 mm or

400 x 400 x 1000 mm
Variants

fresh water valves on request with heating
Downloads Product info (1 MB) Power and water bollards (5 MB) Data sheet supply bollards (262 KB)
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Power and water bollard Power and water bollard Modena\')}')}

References

Power and water bollard Modena

Steigenberger Parkhotel, Braunschweig

In the summer of 2013, two Modena-type power and water bollards were installed in the outside facilities of the Steigenberger Parkhotel in Braunschweig to supply electricity and fresh water. They also have a waste water connection.

Wolfenbütteler Straße 67, 38102 Braunschweig

learn more
Steigenberger Parkhotel, Braunschweig

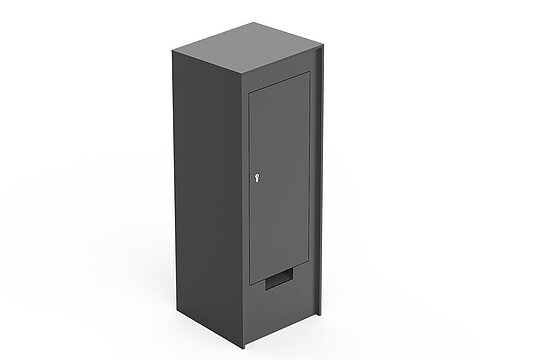

Power and water bollard Modena

Hochdahler Markt, Erkrath

As part of the expansion of the Hochdahler market in Erkrath, 4 Modena-type power and water bollards were installed.

Hochdahler Markt, 40699 Erkrath

learn more
Power and water bollard Hochdahler Markt, Erkrath
