Turnpike red/white for dowelling

  • Main and support props hot-dip galvanized and duplex powder coated in RAL 3020 (traffic red).
  • Height adjustable support (-100 / + 150 mm)
  • Maintenance-free mounted locking beams made of high-strength aluminum with anti-seat bar and screw guide,
  • RAL 9010 pure white powder coated with red and white reflective stripes
  • Horizontal adjustment of the locking beam of +/- 5 % possible
  • In standard version to be locked by means of a padlock (accessory) on the stainless steel bolt of the main post
  • Accessories:
  • Simple fire department triangular lock "Simplex" for the main support.
  • Lock case with profile cylinder lock for the main support
  • Lock case with profile cylinder lock and fire department triangular lock for the main column
  • Lock case with profile cylinder lock for the support column
  • Lock case with profile cylinder lock for the support column
  • Mounting cage for setting in concrete
Downloads Product info (147 KB) Foundation plan (fixed support) (293 KB) Foundation plan (sprung pendulum support) (274 KB) Mounting instructions (342 KB)
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}

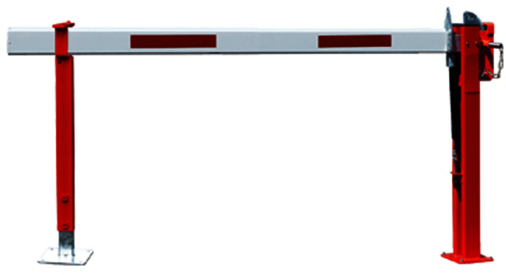

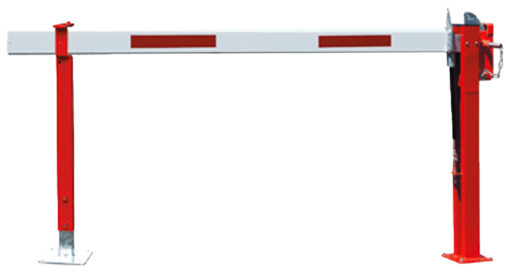

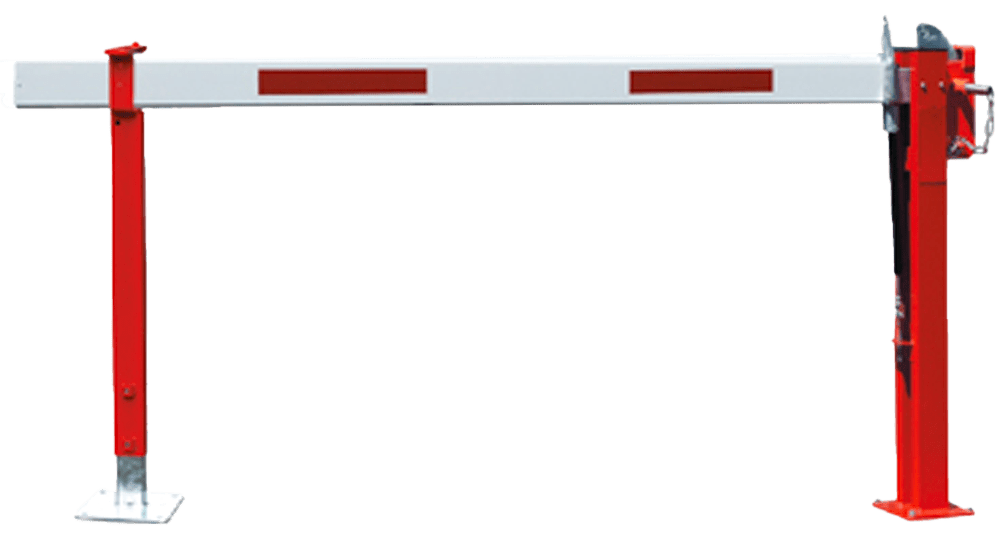

Fixed support
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}

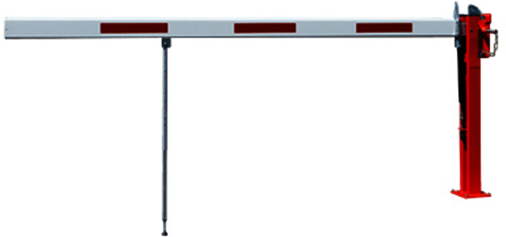

Sprung pendulum support
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'WES 31 Standard gas pressure spring Turnpike red/white for dowelling\')}')}

Dimensions & Order No.

Length Article no.
3,0 m 3-031-3000-0002
3,5 m 3-031-3500-0001
4,0 m 3-031-4000-0001
4,5 m 3-031-4500-0003
5,0 m 3-031-5000-0005
5,5 m 3-031-5500-0001
6,0 m 3-031-6000-0008

Accessories

  • Fire brigade triangular additional set for barrier with gas spring WES 300D
  • Fire brigade triangular additional set for barrier with counterweight WES 150
  • Lock case support profile cylinder lock for vertical swing barriers
  • Lock case support fire brigade triangle for vertical swing barriers
  • Simplex triangular lock for WES 31 Standard and WES 41 Standard
  • Lock case profile cylinder and fire brigade triangular for: turnstiles and height limitation and WES 31 and WES 41
  • Lock case profile cylinder for: turnstiles and height limitation and WES 31 and WES 41
  • Pendulum support spring-loaded and height-adjustable
  • Fire brigade triangular key standard
  • Closing mechanism extension set for barrier with counterweight WES 150
  • Locking force extension set for barrier with gas pressure spring WES 300D
  • Padlock 60 mm
