Ventilation shaft cover Airflow 4-sided open

Frankfurt, Rüsterstraße

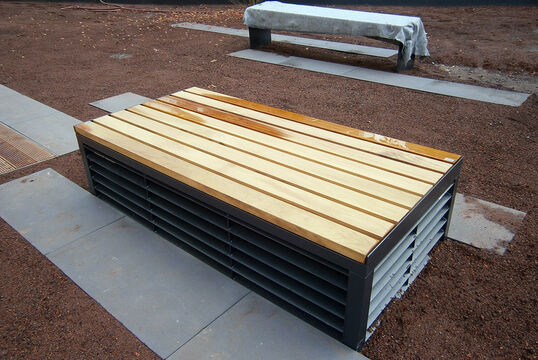

As part of the new construction of an office and administration building in Rüsterstraße 6 - 9 in Frankfurt, four ventilation shafts were covered with ventilation bonnets from Thieme GmbH. By installing a seat, one of these slatted bonnets can be used as an attractive, modern seating option.

Planer
Project participants
Realisation June - november 2013
Execution

4 ventilation shaft cover with lamella grating, dimensions (WxDxH): 1.90 x 0.90 x 0.40 m, upper end designed as a cover, height 50 mm, which prevents rain from falling into the ventilation shaft, all steel parts hot-dip galvanised and colour-coated on a 2-component epoxy basis, colour: RAL 7016 anthracite grey

1 bench support for lamella grating on ventilation shaft Bench support type Aurich without backrest, length 1,900 mm, seat support made of Kambala, natural finish, all steel parts hot-dip galvanised and colour-coated on a 2-component epoxy basis, colour: RAL 7016 anthracite grey

Address Rüsterstr. 7, 60325 Frankfurt am Main
