Ventilation shaft cover with plant cover and drainage

Frankfurt am Main, Amelia-Mary-Earhart-Straße

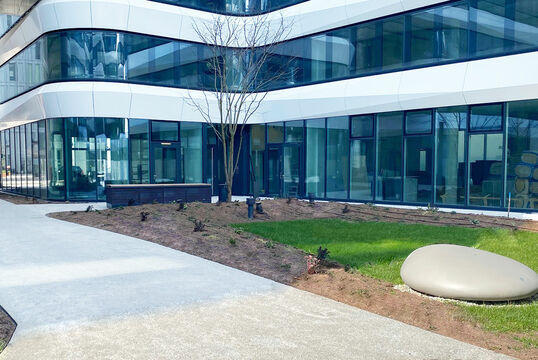

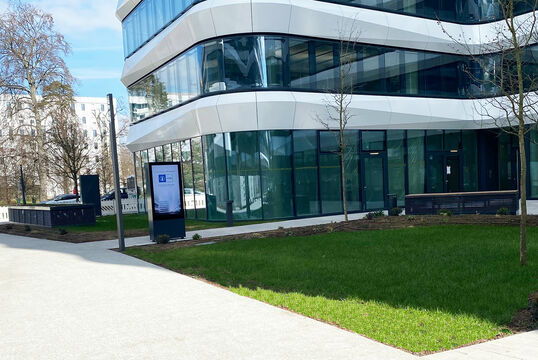

For the outdoor area of the EUROPA-CENTER Gateway Gardens in Frankfurt, the Airflow ventilation bonnets were integrated into the green area. Different versions were used to ventilate the underground car park. The Airflow H ventilation shaft covers with their wooden overlay and the Airflow with plant cover loosen up the overall appearance.

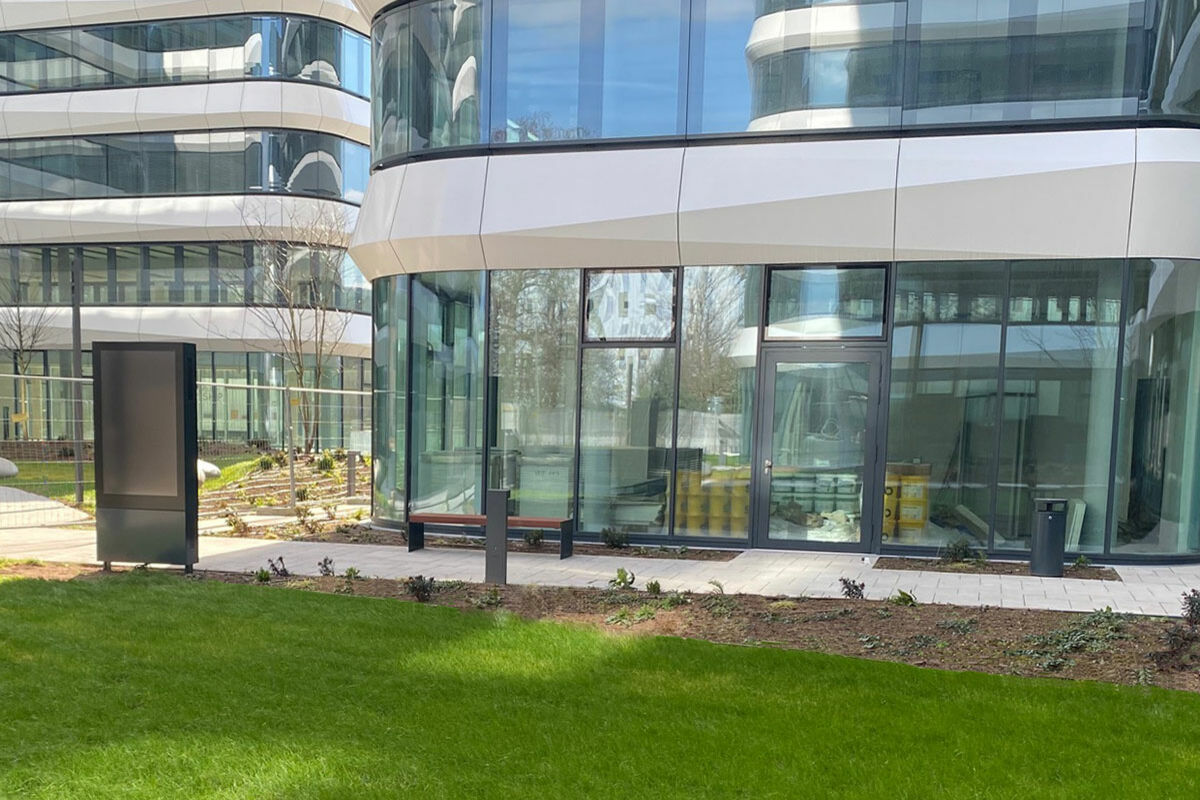

The Kalmar benches together with the Airflow H invite you to linger outside. Litter bins of the 724 series have also been installed.

Project participants
Realisation Spring 2023

4 ventilation shaft covers with wooden seat support, upper end designed as a cover, height 50 mm, which prevents rain from falling into the ventilation shaft incl. wooden seat strips made of Kambala, natural finish and insect screen made of galvanised steel.


3 ventilation shaft covers with lamella grating, upper end designed as a cover, incl. insect screen made of galvanised steel (one ventilation shaft cover also has one side half-closed).

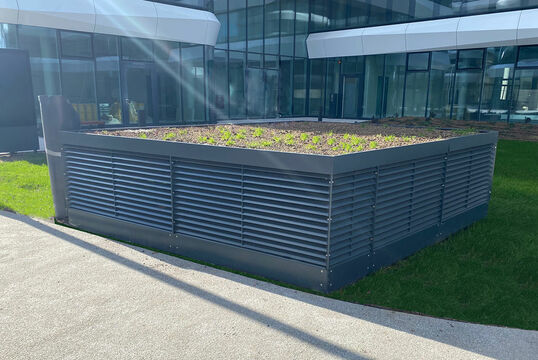

2 ventilation shaft covers with planting bed tray (height 120mm) for sedum mat, incl. insect screen made of galvanised steel

5 litter bins 724 series, Ø 335 mm, height 845 mm, round, 35 litres, to screw on, with galvanised inner container and cigarette shaft, galvanised steel and colour coated

4 Kalmar benches, dimensions (LxWxH): 1886 x 500 x 450 mm, fixed for embedding in concrete, without backrest, without armrest, natural cambala seat surface

Address Amelia-Mary-Earhart-Straße 11-13, 60549 Frankfurt am Main – Flughafen
