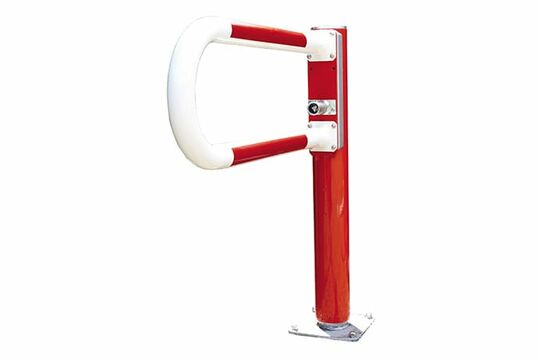

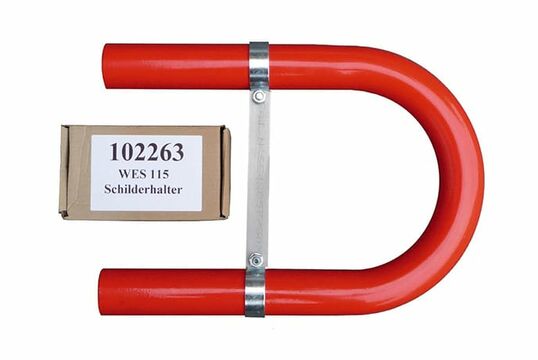

WES 115 with pipe bracket

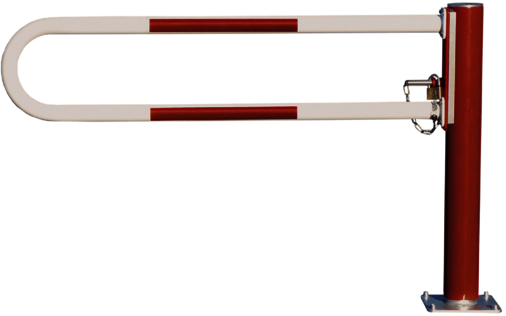

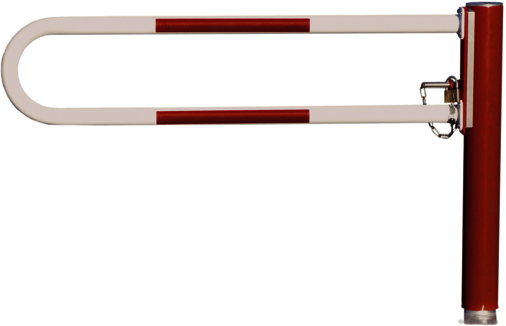

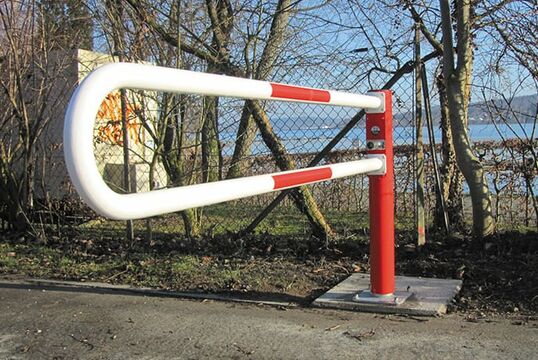

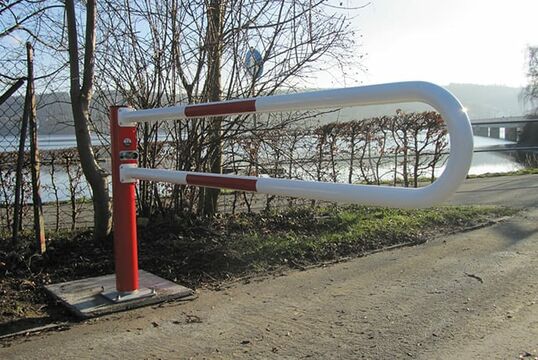

Turnstile for dowelling or setting in concrete
  • Horizontally rotating, all 90° lockable
  • All steel components hot-dip galvanized or stainless steel
  • Rotating support made of steel tube 121.0 x 4.0 mm
  • Main support made of tubular steel 101.6 x 2.9 mm
  • One-piece tubular steel locking bracket 60.3 x 2.9 mm
  • Without support = less assembly costs
  • Mounting by screwing on base plates 250 x 250 mm or setting the mounting cage in concrete
  • Various locking options on the main support, standard for padlock
  • Height above ground 1000 mm
  • Type widths from 1000 to 3000 mm
Downloads Product info (148 KB) Foundationplan (dowel-on) (69 KB) Foundation plan (set in cncrete) (66 KB) Mounting instructions (303 KB)

Dimensions & Order No.

Length Article no. (dowelled on) Article no. (set in concrete)
1,0 m 3-115-1000-0064 3-115-1000-0063
1,5 m 3-115-1500-0103 3-115-1500-0102
2,0 m 3-115-2000-0123 3-115-2000-0122
2,5 m 3-115-2500-0119 3-115-2500-0118
3,0 m 3-115-3000-0132 3-115-3000-0131

Accessories

  • Lock case profile cylinder for: turnstiles and height limitation and WES 31 and WES 41
  • Lock case profile cylinder and fire brigade triangle for: turnstiles and height limitation and WES 31 and WES 41
  • Extension set forced closing for turnstile and height limitation (only in combination with lock case)
  • Support for lock case Fire brigade triangle for vertical turnstiles
  • Lock case support profile cylinder lock for vertical swing locks
  • Extension set triangular lock Simplex for turnstile and height limitation
  • Fire brigade triangular key standard
  • Padlock 60 mm
