Passenger shelter Bayern

The recurring system component is the clearly shaped post with its discreet head. Despite the restraint in the design, there is always a clear recognition value. Thanks to their simple design, the elements of the Bavaria passenger shelter can be used in almost all public places.


hot-dip galvanised steel, colour-coated, aluminium, laminated safety glass (VSG), toughened safety glass (ESG)

Colours Full range of RAL‑ or DB-colours available

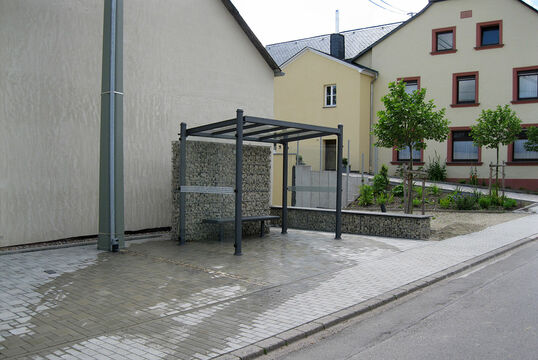

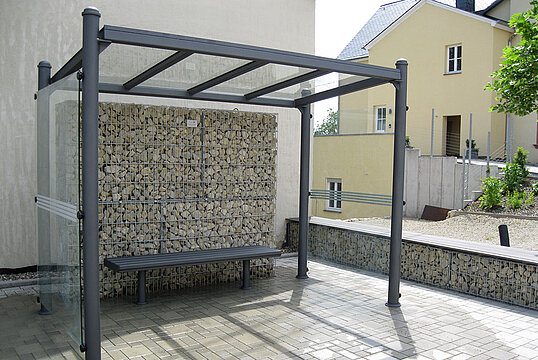

Monopitch roof
in steel-glass construction, steel posts with attached roof construction made of steel profiles

Gable roof
in steel-glass construction, steel posts with ground collars, roof construction suspended between the posts

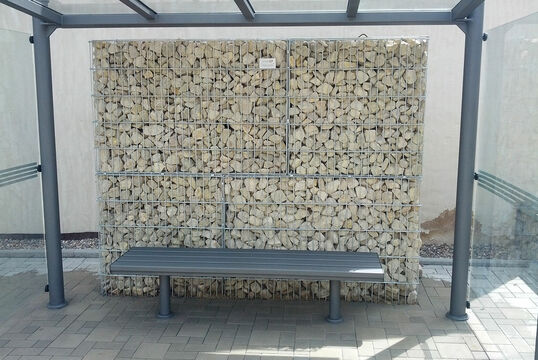

roof covering made of laminated safety glass (VSG), side glazing made of toughened safety glass (ESG) with warning tape markings, with or without bench

Accessories barrier posts, litter bins, bicycle stands, information systems, benches, supply bollards

Monopitch roof
standard grid: 3.00 m
pane grid rear wall: 1.50 m
clear height: 2.36 m
roof depth: 1.50 m

Gable roof
standard grid: 1.43 m
clearance height: 2.35 m
roof depth: 1.50 m
roof overhang: 0.35


Monopitch roof
in steel-glass construction, without side glazing, variable lengths, roof covering of corrugated aluminium, polycarbonate, acrylic glass or by arrangement,

Gable roof (square, hexagonal, octagonal, ...)
gable roof construction, roof cladding of titanium zinc sheet, side glazing with alternative warning markings (e.g. birds, ...),

side cladding alternatively sheet metal (aluminium, perforated sheet metal, ...) or laminated panels (e.g. Trespa panels)

Service individual object planning and consultation with customisation to your desired size, complete incl. installation by our company
