Passenger shelter Novara ST

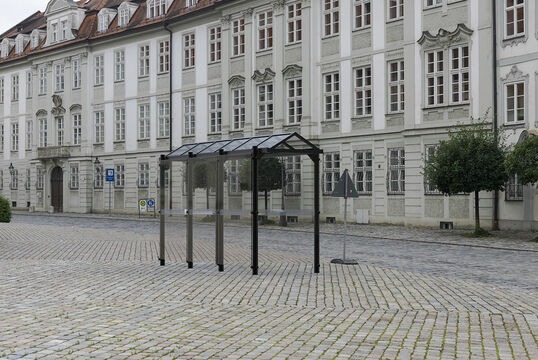

The bus shelter with gable roof in steel and glass construction and its slender but robust posts with slight curvature at the head make the Novara ST model one of the most popular passenger shelters with all urban planners.

Material

hot-dip galvanised steel, colour-coated, aluminium, laminated safety glass (VSG), toughened safety glass (ESG)
Colours all RAL‑ or DB-colours
Version

Monopitch roof
in steel-glass construction, steel posts with attached roof construction made of steel profiles

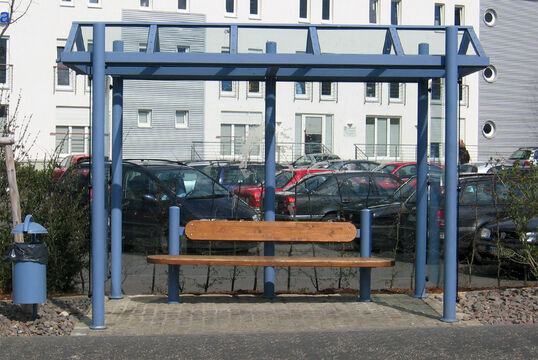

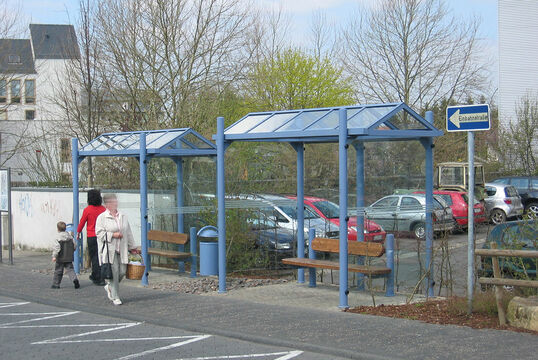

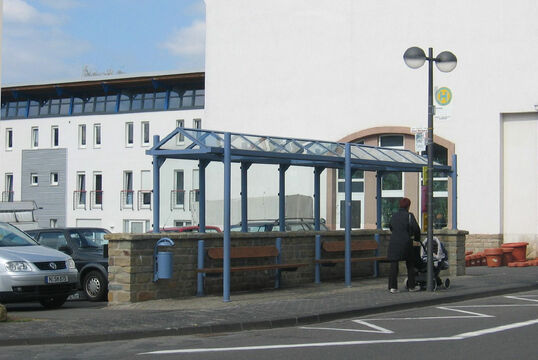

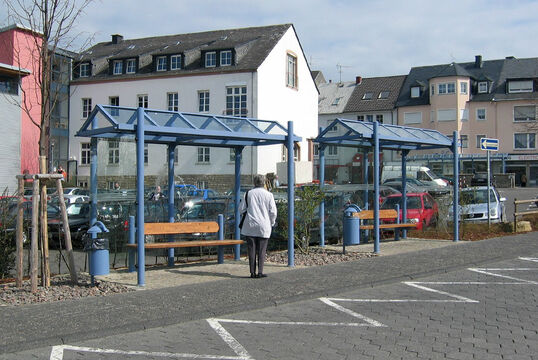

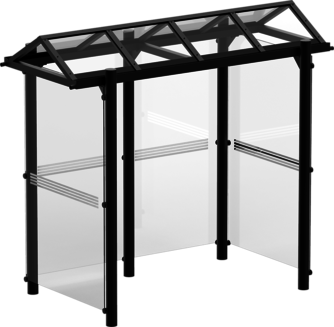

Gable roof
in steel-glass construction, steel posts with ground collars, roof construction suspended between the posts

roof covering made of laminated safety glass (VSG), side glazing made of toughened safety glass (ESG) with warning tape markings, with or without bench
Accessories barrier posts, litter bins, bicycle stands, information systems, benches, supply bollards
Dimensions

Monopitch roof
standard grid: 3,00 m
pane grid rear wall: 1,50 m
clear height: 2,36 m
roof depth: 1,50 m

Gable roof
standard grid: 1,43 m
clearance height: 2,35 m
roof depth: 1,50 m
roof overhang: 0,35
Variants

Monopitch roof
in steel-glass construction, without side glazing, variable lengths, roof covering of corrugated aluminium, polycarbonate, acrylic glass or by arrangement

Gable roof (square, hexagonal, octagonal, ...)
Gable roof construction, roof cladding made of titanium zinc sheet, side glazing with alternative warning markings (e.g. birds, coat of arms, ...)

side cladding alternatively sheet metal (aluminium, perforated sheet metal, ...) or laminated panels (e.g. Trespa panels)
Service individual object planning and consultation with customisation to your desired size, complete incl. installation by our company
Downloads Product info (647 KB) Brochure roofings (14 MB)
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Novara ST\')}')}

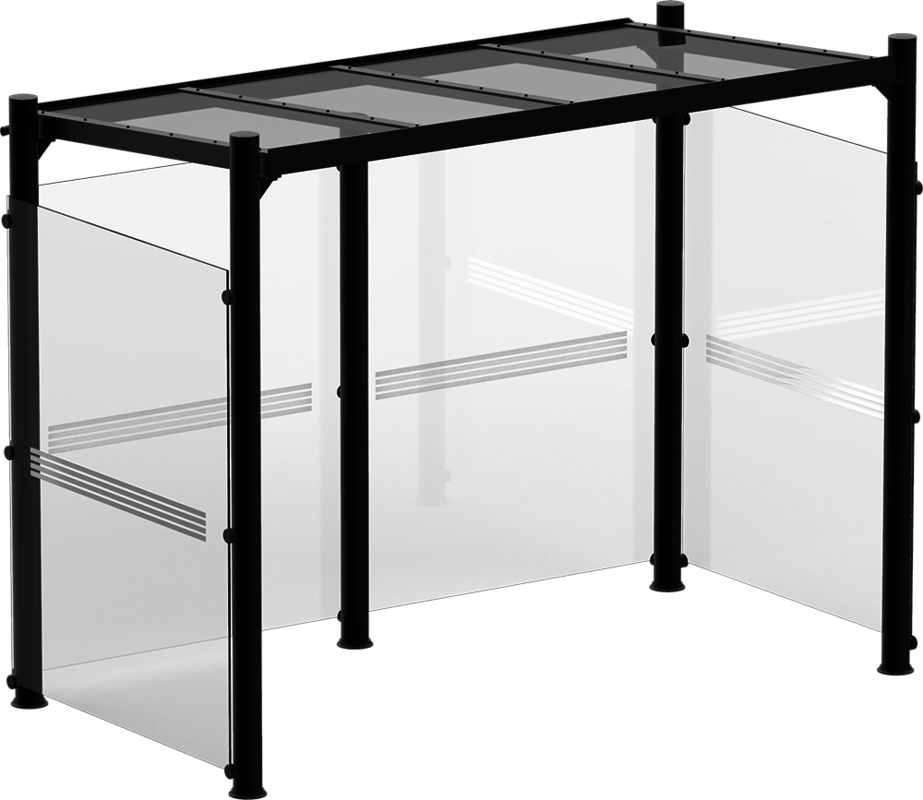

Monopitch roof
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Novara ST\')}')}

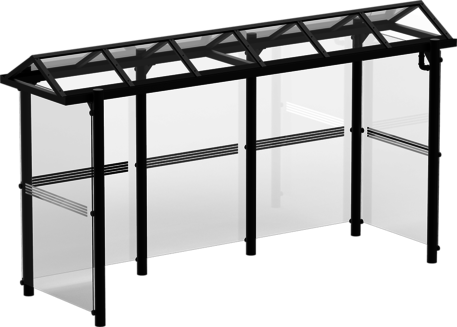

Gable roof
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Novara ST\')}')}

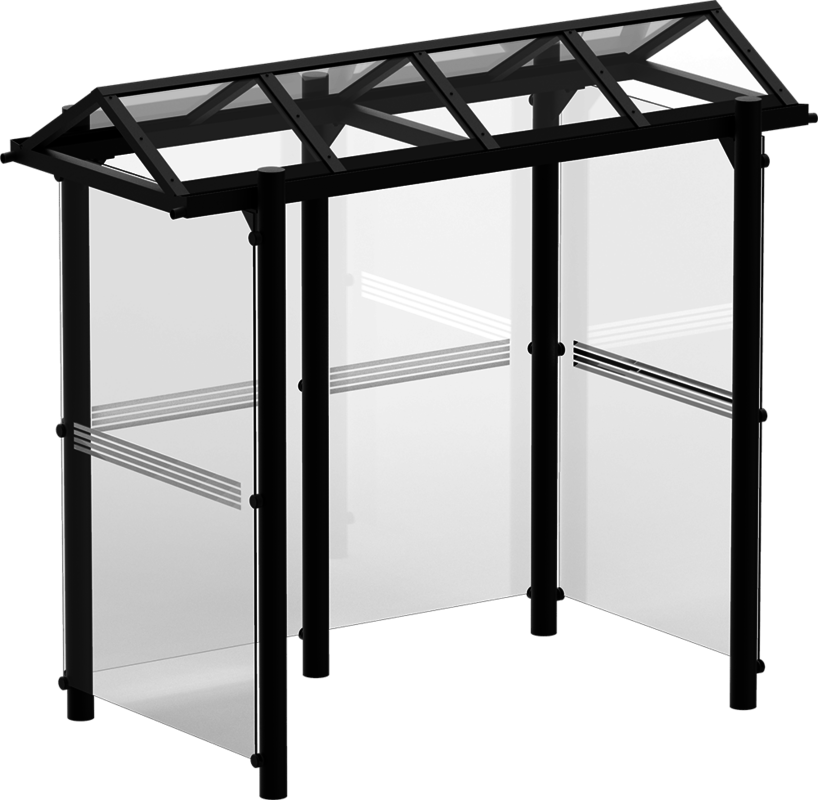

Gable roof
